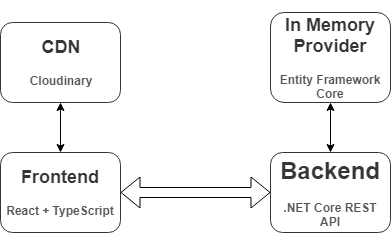

Architecture

I decided to create a fully-separated architecture with a frontend being deployed/developed separately from the backend/REST API. This would allow us to have multiple clients interface (in the case we’re developing mobile applications or smart devices or anything else that needs the API) with the API since there is no coupling involved between the backend and the consumer.

The frontend is written using React with TypeScript; nothing too crazy if you’ve used React before. I’m using hooks as I feel they’re the best way to write resilient components and avoid introducing some development practices that are hard to debug. The only meaningful libraries pulled in are React Router for client-side routing and styled-components for CSS-in-JS styling. I’m using Cloudinary as a CDN to host the party logos and character avatars, which is admittedly a bit overkill for this project.

The backend is also a vanilla .NET Core REST API scaffolded using the dotnet CLI. I decided to use Entity Framework Core’s InMemoryProvider to store information to meet the requirements for storing the data in memory.

Running Direwolves & Dragons Locally

Prerequisites

• Node 10+
• .NET Core 2.2

Clone Repo

git clone https://github.com/ByronGuina/direwolves-and-dragons

Frontend

npm install # yarn
npm start   # yarn start

Backend

cd backend
dotnet run

You don’t need to run any migration scripts for seeding data as I’m using Entity Framework Core’s InMemory Provider and initializing the data when the application starts.

See backend/Data/DataGenerator.cs

You can also check out Direwolves & Dragons online! Sorta…

The application frontend is hosted at https://direwolves-and-dragons.netlify.com and the backend/API is hosted on Digital Ocean. Unfortunately, it’s read-only. For whatever reason the POST, PATCH, and DELETE methods are getting blocked by CORS, even though I have CORS on the backend set up to allow any origin, method, and header. I’m looking into this as I have time, so please think of the deployment as a nice icing on the cake if it starts working.

Issues I encountered

• Initializing the data in for the InMemory Provider did not correctly associate Character data with a given Party. As a workaround I would have to search for the associated characters in the controller (using LINQ) and assign it to the Party before returning the data to the frontend. Normally this data would be more normalized and I would likely use a join table to associate the IDs between a Party and a Character.
• In the client I initially tried to be more generic with my API layer, but the way I designed/architected the editing UI made it so it was convoluted to determine whether a request should be POST or PATCH. I opted for separate functions, but the UI design could have been more distinct between creating and editing an item which would help allegiate some issues with the ambiguity.

• Synchronizing the types between C# and TypeScript caused some difficulty, particularly with how differently C# and TypeScript handle values for enums. Rather than set up complicated validation logic on the client and server, I just opted to store the race and class as strings and let the user enter whatever they want. In the future I’d rather restrict the race and class options and unify the types between the client and API.

  Now-a-days I tend to prefer to use GraphQL over than REST-based APIs where possible. Since the GraphQL schema is typed and inspect-able, we get some really convenient tooling for generating client-side types based on our backend schema.

• Creating the initial 25+ characters with associated classes, races, stats, and images took longer than I expected. Thank you Twitch for giving me something to watch in the background while changing 500 lines one at a time.

• We ended up with some duplicate data between the parties UI and the individual party UI (with characters). Normally I would optimize the data returned from the REST API to ensure we’re getting as little unnecessary data as possible, but with an application this small and the amount of data I didn’t think it was necessary to spend a lot of time on data optimization. Getting unnecessary data in a request is one of the shortcomings of REST APIs in general, and another reason I like using GraphQL where I can.

Logical next steps to improve the app

• A persistent database instead of an in memory database is obvious in order to avoid the volatility/security issues with an in memory solution. As part of this, the data architecture could be written better. Currently there’s not a great normalized relationship between a Party and Characters. This causes issues with how we set up controllers and the requests on the frontend. Next steps would be to spin up a persistent database and improve the current data architecture and normalization to ensure we are safely/correctly updating relationships and make the data more meaningful, while also making requests and responses as optimized as possible by not passing around extraneous data to the frontend. (that was a long sentence)
• I generally always write tests (where applicable), so the next step would be to include tests so we’re more confident the application is working as intended, and that we immediately know if we introduce any breaking changes.
• Set up Continuous Integration/Continuous Deployment pipeline so we can automate the testing and deployment process. Let robots do the work for us! CI/CD is currently set up for the frontend portion of the application using GitHub Actions and Netlify.

• I’m not a designer (although that’s an area I’m improving). Given the short time-frame for the project the UI isn’t as fleshed out, designed, or consistent as it could be. Next steps would be to unify the UI components a bit and make the applications have a better overall feel.

  Additionally, it’s not mobile-friendly at all. Depending on the target user-base, creating the application to be mobile-first could have been a higher priority.

• The management forms for a given item are missing a few key features usually found in forms. There isn’t super strict validation for every field in the form. The number-related statistics and saving throws fields do have validation to ensure the value entered is a number, but the pure string fields do not. Including validation and error states for the user-entered fields could help direct and educate users to provide a better user experience. Additionally, there is no sanitation for the fields on either the client or the backend. Next steps would be to validate the fields to ensure data integrity and a better user experience while also sanitizing inputs on the client and backend to protect against malicious scripts.

• Improved UX for the management UI altogether. Currenty the management UI is fairly simple. The simplicity results in there being some unclear actions in regards to how to create/edit/delete items. Adding animations to show loading/submitting/deleting states and some on-boarding elements would help direct users in the right direction and educate how to correctly manage items. Additionally, I would remove the ambiguity between creating and editing an item. This could be done with separate UIs or workflows or a myriad of different things. Again, I’m improving my UX and UI design skills as much as I can!
• Depending on the user base and the business goals it might make sense to implement server-side rendering for the frontend. There are many existing solutions for server-side or universal/isomorphic rendering with React (such as Next.js), or we could roll our own SSR solution. Among other things, SSR would allow us faster time-to-interactive on slow connections as well as more reliable indexing for SEO purposes.
• I’d like to better handle arbitrarily-sized inputs for character/party names and create a more flexible UI or restrict the input size.

• Another optimization win would be to implement image optimization for better performance and correctly size the images for the avatars and party logos. Since we’re using Cloudinary as our image CDN we can achieve this fairly easily for the initial data with some url parameters. Additionally I’d use better/more professional pictures altogether.

  Along with this, I would add functionality for uploading images rather than links, which would be stored in Cloudinary. This would allow us to use all the image optimization and caching wins we get with a CDN for every image rather than just the initial ones.
