beacon

(beacon:灯塔.意为技术乃coder前进之方向)

-blue.svg)

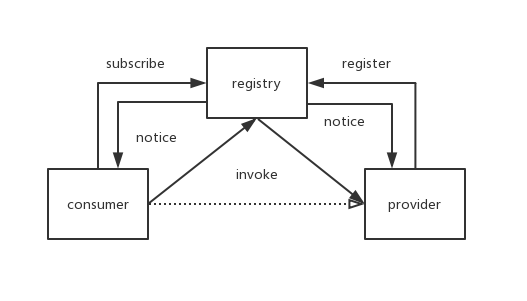

基本原理:

调用流程:

consumer:

spring factory bean,基于接口生成
->proxy,生成代理类(cglib/jdk)
->registry,注册接口
->filter 自定义过滤器,对接口进行过滤
->tolerant,容错机制(failfast等)
->loadBalance(负载均衡,random等)
->strategy(熔断降级)
->invocation(生成调用者)
->serialize(进行消息序列化)
->tranporter to pro ,wait result(通讯层传输给provider端)

provider:

->transporter接收消息
->deserialize 反序列化消息
->local invoke
->serialize 进行消息序列化
->transporter to con,send result(通讯层传输给consumer端)

快速开始:

provider端:

在pom文件中引入:

<dependency>
 <groupId>com.xiaoyu</groupId>
 <artifactId>beacon</artifactId>
 <version>0.0.1</version>
</dependency>

创建公共api

public interface IHelloService {
 public String hello(String name);
}

实现IHelloService

public class HelloServiceImpl implements IHelloService {
 @Override
 public String hello(String name) {
     return "hello " + name;
 }
}

创建beacon-server.xml

 <?xml version="1.0" encoding="UTF-8"?>
 <beans xmlns="http://www.springframework.org/schema/beans"
     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
     xmlns:beacon="http://www.iwouldbe.com/schema/beacon"
     xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
     http://www.iwouldbe.com/schema/beacon http://www.iwouldbe.com/schema/beacon.xsd">
     <!--beacon相关配置  -->
     <beacon:protocol name="beacon" port="1992" ></beacon:protocol>
     <beacon:registry address="127.0.0.1:2181" protocol="zookeeper" ></beacon:registry>
     <beacon:exporter id="helloService1" group="dev"
         interfaceName="com.xiaoyu.test.api.IHelloService" ref="com.xiaoyu.test.api.impl.HelloServiceImpl" ></beacon:exporter>
 </beans>

在你的spring xml中引入beacon-server.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   ">
<context:component-scan base-package="com.xiaoyu " ></context:component-scan>
<import resource="classpath:beacon-server.xml" ></import>
</beans>

创建启动类

    public static void main(String[] args) throws Exception {
            ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext("classpath:spring-application.xml");
            try {
                CountDownLatch latch = new CountDownLatch(1);
                context.start();
                latch.await();
            } finally {
                context.stop();
                context.close();
            }
    }

consumer端:

在pom文件中引入:

<dependency>
 <groupId>com.xiaoyu</groupId>
 <artifactId>beacon</artifactId>
 <version>0.0.1</version>
</dependency>

创建beacon-server.xml
```
<?xml version=”1.0” encoding=”UTF-8”?>

<beacon:reference id=”helloService”

 interfaceName="com.xiaoyu.test.api.IHelloService" timeout="3000" retry="0"
 tolerant="failfast" group="dev" ></beacon:reference>

3. 创建启动类

 public static void main(String[] args) throws Exception {
    ConfigurableApplicationContext context = new ClassPathXmlApplicationContext("classpath:beacon-client.xml");
    try {
        CountDownLatch latch = new CountDownLatch(1);
        // service调用
        IHelloService service = (IHelloService) context.getBean(IHelloService.class);
        System.out.println(service.hello("xiaoming"));
        latch.await();
    } finally {
        context.stop();
        context.close();
    }
}

### 更多详细使用可见[beacon-example](https://github.com/dressrosa/beacon/tree/master/beacon-example)
## 配置
### consumer端常用配置:
1. beacon:protocol 配置协议
2. beacon:registry 配置注册中心
3. beacon:reference 配置接口引用
**beacon:protocol:**
| 字段名称 | 含义     | 备注               |
| -------- | -------- | ------------------ |
| name     | 协议名称 | 支持beacon或http   |
| port     | 暴露端口 | 用于连接provider端 |
**beacon:registry:**
| 字段名称 | 含义         | 备注                  |
| -------- | ------------ | --------------------- |
| protocol | 协议名称     | 支持zookeeper         |
| address  | 注册中心地址 | 格式如:127.0.0.1:2181 |
**beacon:reference:**
| 字段名称      | 含义         | 备注                                             |
| ------------- | ------------ | ------------------------------------------------ |
| id            | 接口id.      | 如userService                                    |
| interfaceName | 接口名称     | 如 com.xxx.com.xxx.UserService                   |
| timeout       | 接口超时时间 | 默认3000(ms)                                     |
| retry         | 重试次数     | 默认0次                                          |
| tolerant      | 容错机制     | 默认failfast  支持failfast,failover              |
| group         | 接口分组     |
| check         | 启动时检查   | true或false                                      |
| generic       | 泛型接口     | true或false                                      |
| downgrade     | 降级策略     | 支持timeout:xxx或retry:xxx或fault:xxx或limit:xxx |
### provider端常用配置:
### provider端配置释义:
1. beacon:protocol 配置协议
2. beacon:registry 配置注册中心
3. beacon:exporter 配置接口暴露
**beacon:protocol:**
| 字段名称 | 含义     | 备注               |
| -------- | -------- | ------------------ |
| name     | 协议名称 | 支持beacon或http   |
| port     | 暴露端口 | 用于连接provider端 |
**beacon:registry:**
| 字段名称 | 含义         | 备注                  |
| -------- | ------------ | --------------------- |
| protocol | 协议名称     | 支持zookeeper         |
| address  | 注册中心地址 | 格式如:127.0.0.1:2181 |
**beacon:exporter:**
| 字段名称      | 含义           | 备注                               |
| ------------- | -------------- | ---------------------------------- |
| id            | 接口id.        | 如userService                      |
| interfaceName | 接口名称       | 如 com.xxx.UserService             |
| ref           | 接口实现类     | 如com.xxx.UserServiceImpl          |
| methods       | 接口暴露的方法 | 按逗号分隔,默认全部暴露            |
| tolerant      | 容错机制       | 默认failfast 支持failfast,failover |
| group         | 接口分组       |
## 泛型调用
泛型调用的作用是无需配置consumer信息来直接调用provider端方法.
### 使用方法
1. 在consumer端配置文件中<beacon:reference ></beacon:reference>中增加配置
generic=true(默认false),来启动泛型调用.
2.beacon提供了一个通用泛型接口GenericService

public interface GenericService {

/**
 * @param method
 *            需要调用的方法
 * @param returnType
 *            返回类型
 * @param args
 *            参数
 * @return
 */
public Object $_$invoke(String method, Object returnType, Object[] args);

}

2.在需要调用的地方

public static void main(String[] args) throws Exception {
ConfigurableApplicationContext context = new ClassPathXmlApplicationContext(“classpath:beacon-client.xml”);
try {
CountDownLatch latch = new CountDownLatch(1);
// 泛型调用
GenericReference refer = new GenericReference();
//设置相关信息
refer.setInterfaceName(“com.xiaoyu.test.api.IHelloService”)
.setTimeout(“3000”)
.setGroup(“dev”);
GenericService generic = GenericRequestLauncher.launch(refer);
Object result = generic.$_$invoke(“hello”, String.class, new Object[] { “cat” });
System.out.println(“re:” + result);
latch.await();
} finally {
context.stop();
context.close();
}
}
```

使用Spring boot:

beacon-spring-boot-starter

目标:

健壮,扩展,优化细节.
